Ensure high-performance and reliable network connectivity with professional fiber optic fusion splicing services in Dubai, UAE by INSYNC IT Solutions. We provide precise, low-loss splicing solutions for telecom, data centers, and enterprise networks. INSYNC INTERNATIONAL is the leading company in Dubai providing the best Fiber Optic Fusion Splicing in Dubai and all over UAE.
Our expert technicians use advanced fusion splicing equipment to deliver strong, durable, and high-speed fiber connections that meet international standards.
What is Fiber Optic Fusion Splicing?
Fusion splicing is the act of joining two optical fibers end-to-end using localized heat. The goal is to fuse the two glass cores together in a way that allows light to pass through with minimal loss or reflection.
While mechanical splicing exists, fusion splicing is preferred because it results in the lowest insertion loss (typically less than 0.1 dB) and the strongest connection.
Fiber optic fusion splicing is a process of joining two optical fibers by melting them together using heat. This creates a seamless connection with minimal signal loss, ensuring efficient data transmission. Fusion splicing is widely used in modern communication networks due to its reliability and performance.

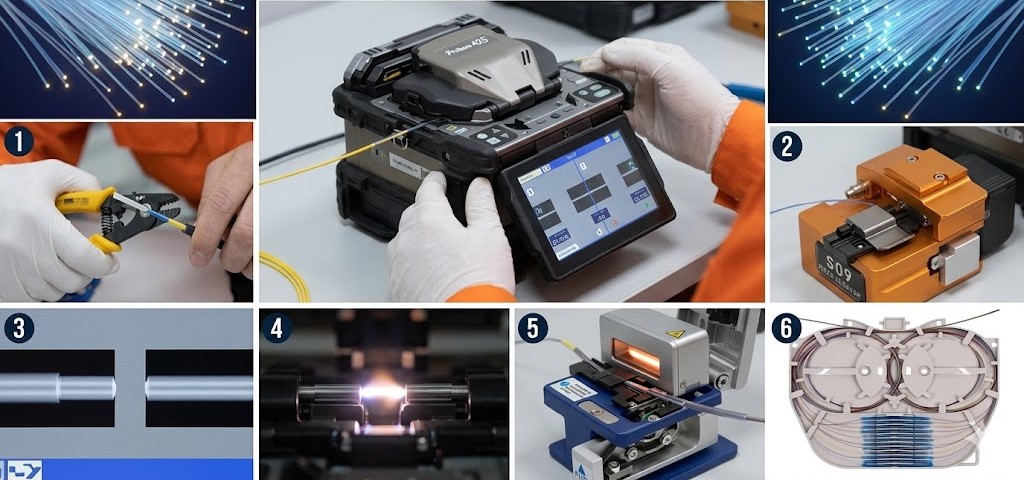

The Step-by-Step Fusion Splicing Process
Achieving a “perfect” splice requires surgical precision. The process generally follows these four critical steps:
1. Stripping
Before you can fuse the fibers, you must remove the protective polymer coatings.
- Tool: Mechanical stripping tool or thermal stripper.
- Goal: Expose the bare glass cladding without nicking or scratching the surface.
2. Cleaning
Even a microscopic speck of dust can cause a splice failure or damage your equipment.
- Method: Use 99.9% reagent-grade isopropyl alcohol (IPA) and lint-free wipes.
- Rule: Always clean the fiber after stripping and before cleaving.
3. Cleaving
The “cleave” is not a cut; it’s a controlled break. A high-precision cleaver scores the fiber and applies pressure to create a flat end-face perpendicular to the fiber axis.
- Key Metric: The cleave angle should ideally be less than 0.5 degrees.
4. Fusing
The prepared fibers are placed into the fusion splicer. The machine uses an automated alignment system (Core or Cladding alignment) and an electric arc to melt the glass ends together.
Types of Fiber Optic Splicing
Fusion Splicing
- Uses heat to permanently join fibers
- Provides the lowest signal loss
- Ideal for long-term and high-performance networks
Mechanical Splicing
- Aligns fibers using connectors
- Faster but slightly higher signal loss
- Suitable for temporary or quick repairs
Our Fiber Optic Splicing Services Include
INSYNC offers complete fiber splicing and network support services:
Fiber Cable Splicing
Accurate joining of fiber optic cables for seamless connectivity.
OTDR Testing & Certification
We perform Optical Time Domain Reflectometer (OTDR) testing to ensure signal quality and detect faults.
Fiber Network Installation Support
End-to-end assistance for new fiber optic network installations.
Fault Detection & Repair
Quick identification and fixing of fiber breaks or signal loss issues.
Fiber Cable Termination
Professional termination for stable and secure connections.
Applications of Fiber Optic Splicing
Our services are widely used in:
- Telecommunications networks
- Data centers
- CCTV and security systems
- FTTH (Fiber to the Home) installations
- Industrial and commercial networks
Why Choose INSYNC for Fiber Splicing in Dubai?
- Skilled and certified technicians
- Advanced fusion splicing machines
- High-precision and low-loss results
- Fast and reliable service across Dubai
- Affordable and customized solutions
- Compliance with industry standards
Benefits of Fusion Splicing
- Minimal signal loss
- High connection reliability
- Long-lasting performance
- Better network efficiency
- Suitable for high-speed data transmission
Fusion splicing is the process of joining two optical fibers using heat to create a permanent, low-loss connection.
Fusion splicing uses heat and offers lower signal loss, while mechanical splicing uses connectors and is quicker but less efficient.
It is used in telecom networks, data centers, CCTV systems, and FTTH installations.
Get Professional Fiber Optic Splicing Services in Dubai
At INSYNC IT Solutions, we ensure your fiber network operates with maximum efficiency and reliability. Whether it’s a new installation or repair, our team delivers high-quality results every time.
Contact us today for expert fiber optic fusion splicing services in Dubai, UAE.
